MADE IN THE USA!
Welcome to CA Design!
Custom Vinyl Bending Equipment to fit YOUR needs!
CA Design has provided the most durable Vinyl Bending machines since 2001. All of our machines and equipment are built out of high quality aluminum made here in the USA. Our equipment is not only for the vinyl window industry, we provide bending systems for:
- Vinyl fence companies for arch top gates & trellises, railings and gazebos & pergolas.

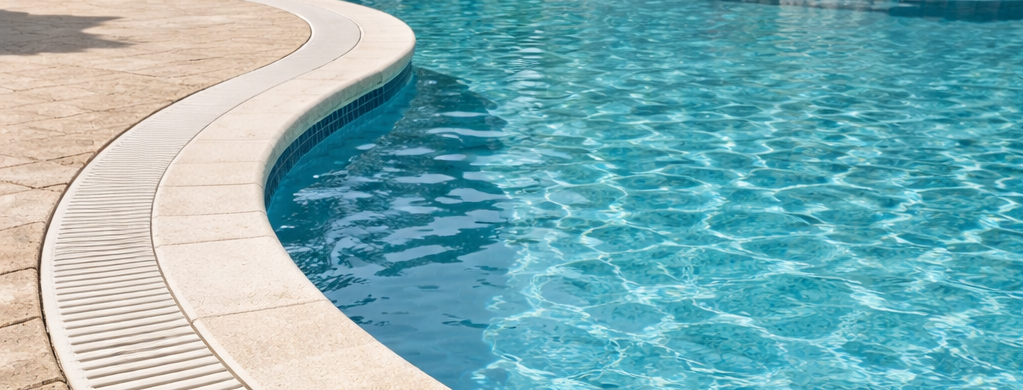

- Swimming Pool Manufactures and Installers for shaped drains & skimmers around the edge of a curved pool.
- Vinyl Window Manufacturers for arch top windows, cathedral windows, rounds and more!
For more information about CA Design click here
Custom Vinyl Bending Systems to fit YOUR needs
Vinyl bending is crucial to window manufacturing companies and bending windows in-house saves thousands of dollars.
C. A. Design offers a complete line of vinyl bending equipment and can customize it to fit your specific needs and window profiles. Bending tables: Our bending table is constructed of aluminum and stainless steel. Each leg is supported on heavy duty locking casters. The sunburst clamping system is CNC machined to aid in smooth movement of each clamp. Customize your Vinyl Bending System: Speed up your bending and welding process by adding accessory extension tables and molds up to 20’ in length. Bend an arch top window with 5’ legs in one step.
Bending tables: Our bending table is constructed of aluminum and stainless steel. Each leg is supported on heavy duty locking casters. The sunburst clamping system is CNC machined to aid in smooth movement of each clamp.
Clamping: Each clamp is made of aluminum, and has a heavy duty die spring. The clamps are designed to hold the mold securely and allow you to easily change the radius.
Molds: Molds are built specifically to fit each of your window profiles. They can be customized to fit other clamping systems on bending equipment that is of a similar design (glazing bead/stop may require a separate mold). Each mold is generally 10’ in length; any increment up to 20’ is available.
Need a machine that will fit your needs?
Allow our experts to consult with you and build a system that will be superior for your bending needs. Every system is customized and accessories can be added as your production changes.
Vinyl Ovens:
The ovens manufactured by CA Design are superior to all other systems.
We use innovative technology and user friendly controls in every machine constructed.
Heat tanks: Each heat tank is made of stainless steel and aluminum.
Choose nearly any length, from 12’ to 20’.
Fill with glycerin or poly-glycol oil, which are non-toxic and water soluble. Each system includes a circulation pump and filtration system to maximize heat efficiency and remove contaminates. An Internal lifting mechanism may be added at the time of your order.
Do you need an economical single point welder to make awesome vinyl welds? We have the solution for you-
Our vinyl welders are not over complicated for the basic function you need, especially if you are just getting started. Our manual hand welder is simple to use and produce excellent welds especially on really complex long weld miters and angles.
Our optional miter blocks and extension arms increase productivity and ensure ease of use and repeatable angles.
Operator Friendly controls:
Vinyl bending systems can be completed with a service package and/or an on site training program.
Service package includes warranty on electrical components includes but not limited to: relays, circulating pump, and temperature process controller.
On site training: Includes equipment setup and hands on bending.
Standard Vinyl Bending Systems include:
10’ x 5’ Bending table
12’ Heat tank or Hot Air Oven
1 set of 10’ Molds
Fast and reliable service: A complete system generally ships within 4-6 weeks and molds can ship within 2 weeks
All equipment is guaranteed (See representative for details).
Molds may vary in price, depending on size and complexity of profile.
Each piece of equipment may be purchased separately. Customized equipment and other options are available.
Pricing and information for service and on site training is available upon request.
Freight and applicable taxes not included.
Contact us for a free quote today.
